Additional Mounting Options

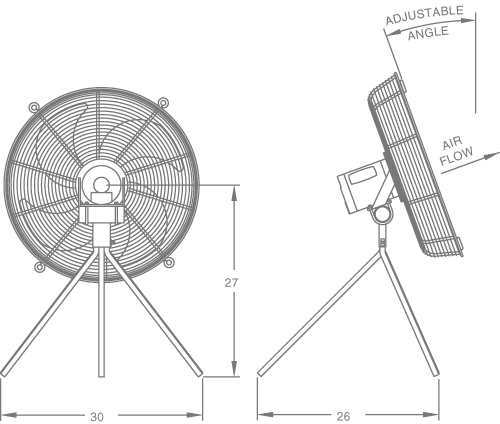

ACC-A8280
TRIPOD MOUNT

The Tripod Mount is best suited for temporary transformer cooling, or the unusual application where it is impossible to attach fans to the transformer radiator.

Requires optional ACC-B10656 Fan Base Mount Adapter, or motor with welded on base.

Dimensions are approximate and are for reference only.

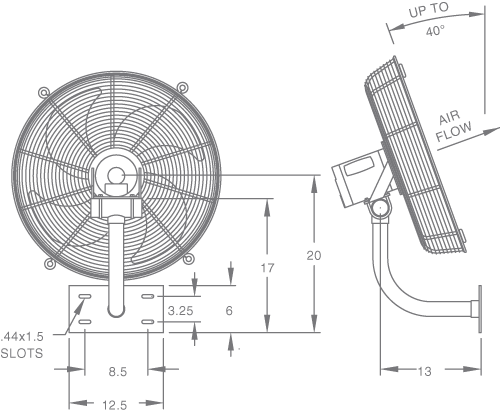

ACC-A9010
STAND-OFF MOUNT

The Stand-Off Mount is designed for small radiator applications, or where angled mounting of the fans is required. When the Stand-Off Mount is fastened to the radiator using the Flush Mount Kit provided, the fan may be positioned at an angle up to 40° from the radiator, thus increasing the area that the fan is cooling.

Includes Flush Mount Kit and U-bolts.

Requires optional ACC-B10656 Fan Base Mount Adapter, or motor with welded on base.

Dimensions are approximate and are for reference only.


ACC-B10656
FAN BASE MOUNT ADAPTER

Utilized when base mounting a Krenz & Company Fan Assembly.
