Horizontal Mounting Options

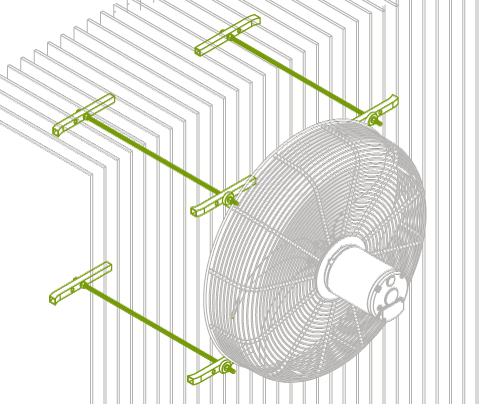

Flush Mount Kits

Krenz-Vent Flush Mount Kits are designed for fast and easy field installation of Horizontal Airflow Transformer Cooling Fans.

Krenz-Vent Flush Mount Kits fit most types and sizes of transformer radiators. One person can easily install it from the front of the radiator.

Application View

Assembly Detail

Order one ACC-A8984 per fan to fit 15” deep radiators. For 20.5” deep radiators order one ACC-A8984-1 per fan. Special length threaded rods available upon request, contact factory for details.

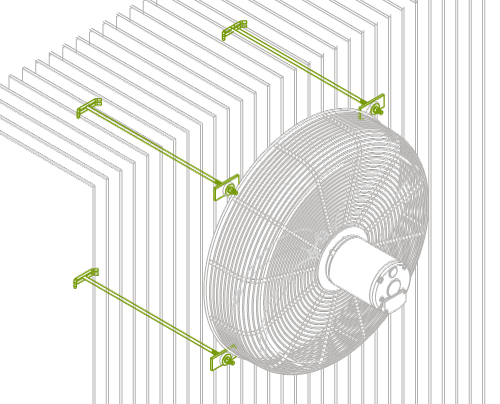

Tee-bolt Kits

Krenz-Vent Tee-Bolt Kits are designed for fast and easy field installation of Horizontal Airflow Transformer Cooling Fans.

Krenz-Vent Tee-Bolt Kits fit most sizes of plate type transformer radiators. One person can easily install it from the front of the radiator.

Application View

Assembly Detail

Order one ACC-A8193 per fan to fit 15” deep radiators. For 20.5” deep radiators order one ACC-A10446 per fan. Stainless Steel Tee-Bolts are also available, contact factory for details.

* Additional options are available. Contact factory for details.
