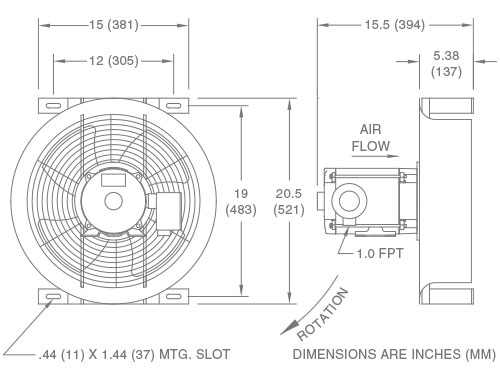

Fan Model F16H
Transformer Cooling Fans
| RPM | CFM(1) | dBA(2) |
|---|---|---|
| 1725 | 4300 | 68.2 |
(1) Actual Airflow in CFM as measured with Horizontal Airflow on discharge side of one 15” deep transformer radiator.
(2) Nominal Sound Pressure values expressed are determined from Sound Power measurements performed in accordance with AMCA 300-08 and are based on a 2 meter measurement distance.
- Spark resistant, heavy duty, cast aluminum fan blade.
- Totally enclosed motor with sealed ball bearings and 303 Stainless Steel shaft.
- Rated for:
Class I; Group C & D; Divisions 1 & 2
Class II; Group F & G; Divisions 1 & 2
Fan Model F16H - 60 Hertz Data
| HP | RPM | PHASE | VOLTAGE | PART NUMBER | RUNNING AMPS | WATTS | STARTING AMPS | NAME PLATE AMPS |
|---|---|---|---|---|---|---|---|---|
| 1/4 | 1725 | 1 | 115 | F16H-A9910 | 4.32 | 328 | 24.80 | 4.40 |
| 1/4 | 1725 | 1 | 208-230 | F16H-A9910 | 2.14 | 316 | 12.40 | 2.20 |
| 1/3 | 1725 | 3 | 208-230 | F16H-A9912 | 1.13 | 280 | 6.90 | 1.20 |
| 1/3 | 1725 | 3 | 460 | F16H-A9912 | 0.56 | 276 | 3.50 | 0.60 |
NOTE: All fans are suitable for operation at +/- 10% of nameplate voltage.
Fan performance data shown is typical data therefore specific fan performance may vary.
