Vertical Mounting Option
Header Mount Kit
The Krenz-Vent Header Mount Kit is used for vertically cooling radiators. The cooling fan can be mounted on the top or the bottom of the radiator on headers from 1” to 5” in diameter.

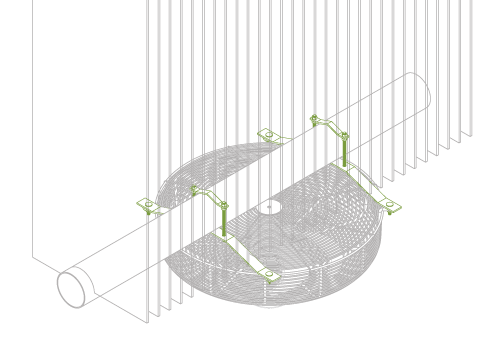

Application View

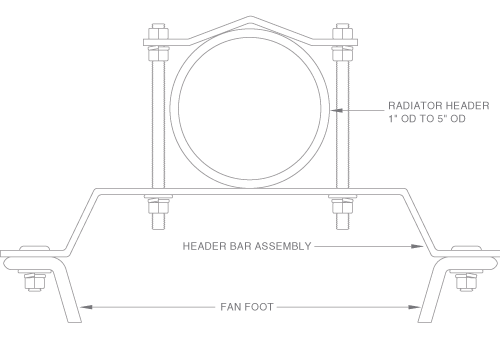

Assembly Detail
| FAN MODELS | HEADER MOUNTS |
|---|---|
| F12 | ACC-A8990-1 |
| F16 | ACC-A8990 |
| F20 | ACC-A8991-5 |
| F24 | ACC-A8991-1 |
| F25 | ACC-A8991-13 |
| F26 | ACC-A8991-2 |
| F26D / F26X | ACC-A8991-3 |
