Fan Model F12
Transformer Cooling Fans


RPM CFM(1) dBA(2)
1140 1360 48.6
1750 2250 61.1

(1) Actual Airflow in CFM as measured with Horizontal Airflow on discharge side of one 15” deep transformer radiator.

(2) Nominal Sound Pressure values expressed are determined from Sound Power measurements performed in accordance with AMCA 300-08 and are based on a 2 meter measurement distance.


  • Our smallest diameter fan design available to provide cooling for the narrowest radiators.
  • Lightweight fabricated fan blade.
  • Hot dip galvanized guards with OSHA spacing.
  • These fans are perfect for small radiators, or maximum area fill on larger style radiators with minimum uncovered area.

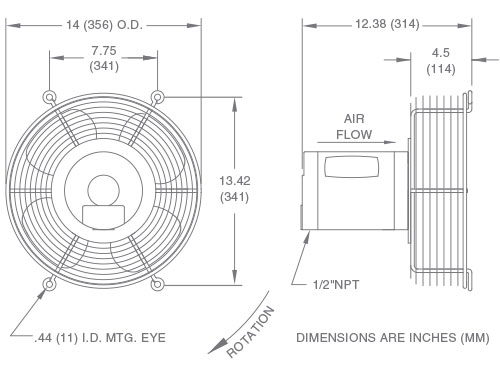

Fan Model F12 Fan Model F12 Drawing

Fan Model F12 - 60 Hertz Data

NOTE: All fans are suitable for operation at +/- 10% of nameplate voltage.
Fan performance data shown is typical data therefore specific fan performance may vary.
