Fan Model F12H
Transformer Cooling Fans


RPM CFM(1) dBA(2)
1725 2250 61.1

(1) Actual Airflow in CFM as measured with Horizontal Airflow on discharge side of one 15” deep transformer radiator.

(2) Nominal Sound Pressure values expressed are determined from Sound Power measurements performed in accordance with AMCA 300-08 and are based on a 2 meter measurement distance.


  • Spark resistant, heavy duty, cast aluminum fan blade.
  • Totally enclosed motor with sealed ball bearings and 303 Stainless Steel shaft.
  • Rated for:
    Class I; Group C & D; Divisions 1 & 2
    Class II; Group F & G; Divisions 1 & 2

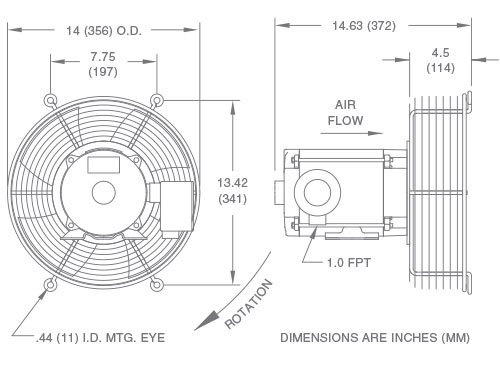

Fan Model F12H Fan Model F12H Drawing

Fan Model F12H - 60 Hertz Data

NOTE: All fans are suitable for operation at +/- 10% of nameplate voltage.
Fan performance data shown is typical data therefore specific fan performance may vary.
