Fan Model F26D
Transformer Cooling Fans


RPM CFM(1) dBA(2)
850 5250 50.9
1140 7400 61.6

(1) Actual Airflow in CFM as measured with Horizontal Airflow on discharge side of one 15” deep transformer radiator.

(2) Nominal Sound Pressure values expressed are determined from Sound Power measurements performed in accordance with AMCA 300-08 and are based on a 2 meter measurement distance.


  • Delivers more airflow at a lower sound level.
  • Utilizes (2) high-efficiency cast aluminum fan blades.
  • Hot dip galvanized guards with OSHA spacing.

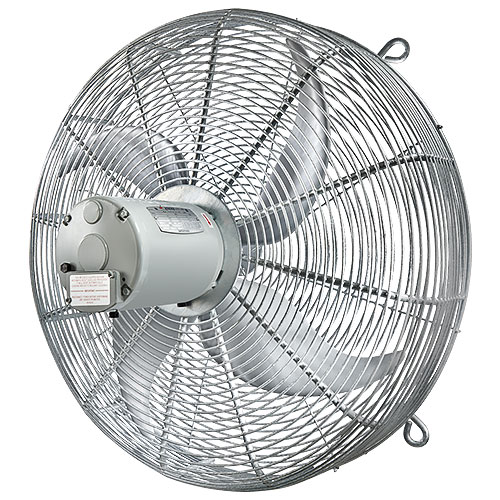

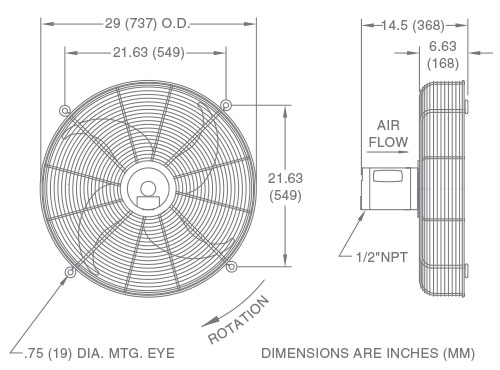

Fan Model F26D Fan Model F26D Drawing

Fan Model F26D - 60 Hertz Data

NOTE: All fans are suitable for operation at +/- 10% of nameplate voltage.
Fan performance data shown is typical data therefore specific fan performance may vary.
